家具系列 71 Series （系列）
2021-08-19 1327

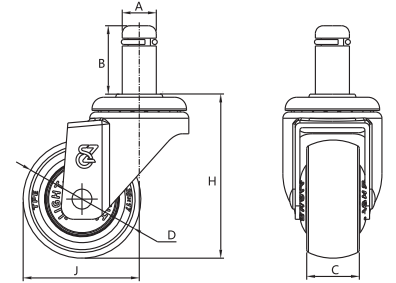

| Product | Model | WhellDiameter(mm) | Load Capacity (KG) | Height (mm) | Swivel Radius (mm) | Wheel Width (mm) | Bearing |
| 产品 | 型号 | 轮径 | 承重 | 安装高度 | 轮子转动半径 | 轮宽 | 轮轴 |
镀锌架MPP轮 Galvanized/PP | 71-Z5-453B25 | 25 | 13 | 40 | 28 | 13 | 滑动轴 Plain bearing |
| 71-Z5-453B32 | 32 | 16 | 46 | 32 | |||
| 71-Z5-453B38 | 38 | 23 | 55 | 37 | 17 | ||
| 71-Z5-453B50 | 50 | 25 | 67 | 45 | 18 | ||
镀锌架TPE轮 Galvanized/TPE | 71-Z5-033G25 | 25 | 12 | 40 | 28 | 13 | 滑动轴 Plain bearing |
| 71-Z5-033G32 | 32 | 16 | 46 | 32 | |||
| 71-Z5-033G38 | 38 | 23 | 55 | 37 | 17 | ||
| 71-Z5-033G50 | 50 | 25 | 67 | 45 | 18 | ||
镀锌架TPU轮 GalvanizedTPU | 71-Z5-213B25 | 25 | 13 | 40 | 28 | 14 | 滑动轴 Plain bearin |
| 71-Z5-213B32 | 32 | 16 | 46 | 32 | |||
| 71-Z5-213B38 | 38 | 25 | 55 | 37 | 18 | 单轴承 Single Bearing | |
| 71-Z5-213B50 | 50 | 28 | 67 | 45 | |||
滚铬架MPP轮 Chrome roll/PP | 71-C5-451Q25 | 25 | 13 | 40 | 28 | 13 | 单轴承 Single Bearing |
| 71-C5-451Q32 | 32 | 18 | 46 | 32 | |||
| 71-C5-451Q38 | 38 | 25 | 55 | 37 | 17 | ||
| 71-C5-451Q50 | 50 | 28 | 67 | 45 | 18 | ||
镀锌架TPU轮 GalvanizedTPU | 71-C5-031K25 | 25 | 13 | 40 | 28 | 13 | 单轴承 Single Bearing |
| 71-C5-031K32 | 32 | 16 | 46 | 32 | |||
| 71-C5-031K38 | 38 | 23 | 55 | 37 | 17 | ||
| 71-C5-031K50 | 50 | 25 | 67 | 45 | 18 |
