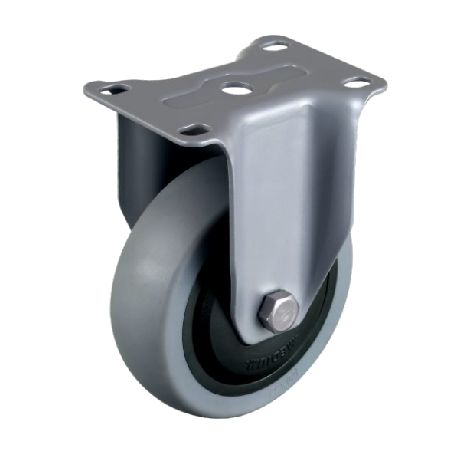

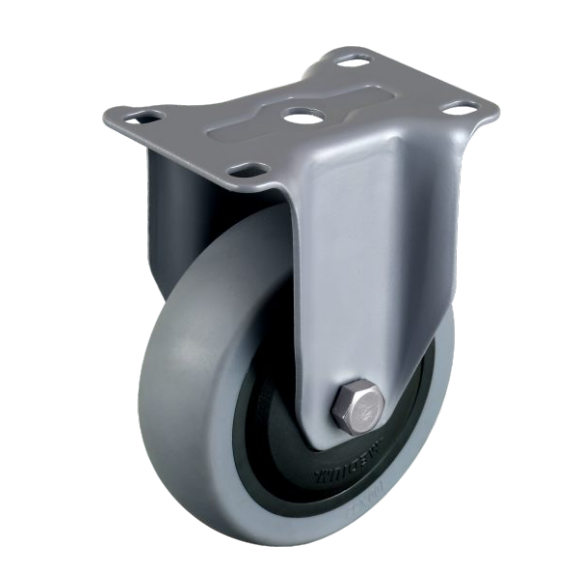

工业系列中型脚轮03 Series（系列）
2021-08-19 1257

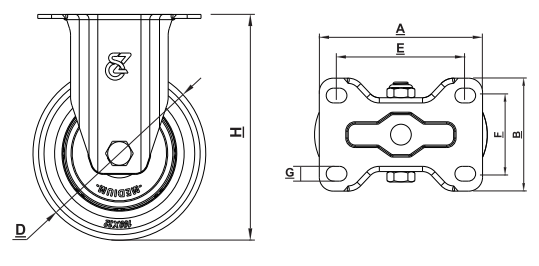

| 尺寸 | 安装方式 | 底板大小 | 安装孔距 | 安装孔 |
| Size | Fitting type | Plate size | Hole spacing | Hole diameter |
| 2.5" | 定向 directional | 95X65 | 78X45 | 8.5 |
| 3" | ||||
| 4" | ||||
| 5" |
| Product | Model | WhellDiameter(mm) | Load Capacity (KG) | Height (mm) | Wheel Width (mm) | Bearing |
| 产品 | 型号 | 轮径 | 承重 | 安装高度 | 轮宽 | 轮轴 |
哑光灰+GTPE-1 防缠盖 | 03-C4-031G63 | 32 | 单轴承 Single Bearing | |||
| 03-C4-031G75 | 75 | 85 | 104.5 | |||
| 03-C4-031G100 | 100 | 115 | 130 | |||
| 03-C4-031G125 | ||||||
挂铬+KTPE-1 防缠盖 | 03-R4-031K63 | 单轴承 Single Bearing | ||||
| 03-R4-031K75 | 75 | 85 | 104.5 | 32 | ||
| 03-R4-031K100 | 100 | 115 | 130 | |||
| 03-R4-031K125 | ||||||
挂铬+EPU-2 | 03-R4-031E63 | 单轴承 Single Bearing | ||||
| 03-R4-031E75 | 75 | 105 | 104.5 | 32 | ||
| 03-R4-031E100 | 100 | 125 | 130 | |||
| 03-R4-031E125 | ||||||
 挂铬+GPP-1 防缠盖 | 03-R4-411G63 | 双轴承 Double Bearing | ||||
| 03-R4-411G75 | 75 | 105 | 104.5 | 32 | ||
| 03-R4-411G100 | 100 | 125 | 130 | |||
| 03-R4-411G125 | ||||||
挂铬+WPA-2 | 03-R4-432W63 | 双轴承 Double Bearing | ||||
| 03-R4-432W75 | 75 | 110 | 104.5 | 32 | ||
| 03-R4-432W100 | 100 | 135 | 130 | |||
| 03-R4-432W125 | ||||||
锌+KTPE-1 防缠盖 | 03-R4-031K63 | 单轴承 Single Bearing | ||||
| 03-R4-031K75 | 75 | 85 | 104.5 | 32 | ||
| 03-R4-031K100 | 100 | 115 | 130 | |||
| 03-R4-031K125 | ||||||
挂铬+EPU-2 | 03-Z4-222E63 | 单轴承 Single Bearing | ||||
| 03-Z4-222E75 | 75 | 105 | 104.5 | 32 | ||
| 03-Z4-222E100 | 100 | 125 | 130 | |||
| 03-Z4-222E125 | ||||||
挂铬+EPU-2 | 03-Z4-411G63 | 单轴承 Single Bearing | ||||
| 03-Z4-411G75 | 75 | 105 | 104.5 | 32 | ||
| 03-Z4-411G100 | 100 | 125 | 130 | |||
| 03-Z4-411G125 | ||||||
锌+WPA-2 | 03-Z4-432W63 | 双轴承 Double Bearing | ||||
| 03-Z4-432W75 | 75 | 110 | 104.5 | 32 | ||
| 03-Z4-432W100 | 100 | 135 | 130 | |||
| 03-Z4-432W125 | ||||||
电泳+KTPE-1 防缠盖 | 03-B4-031K63 | 单轴承 Single Bearing | ||||
| 03-B4-031K75 | 75 | 85 | 104.5 | 32 | ||
| 03-B4-031K100 | 100 | 115 | 130 | |||
| 03-B4-031K125 |
